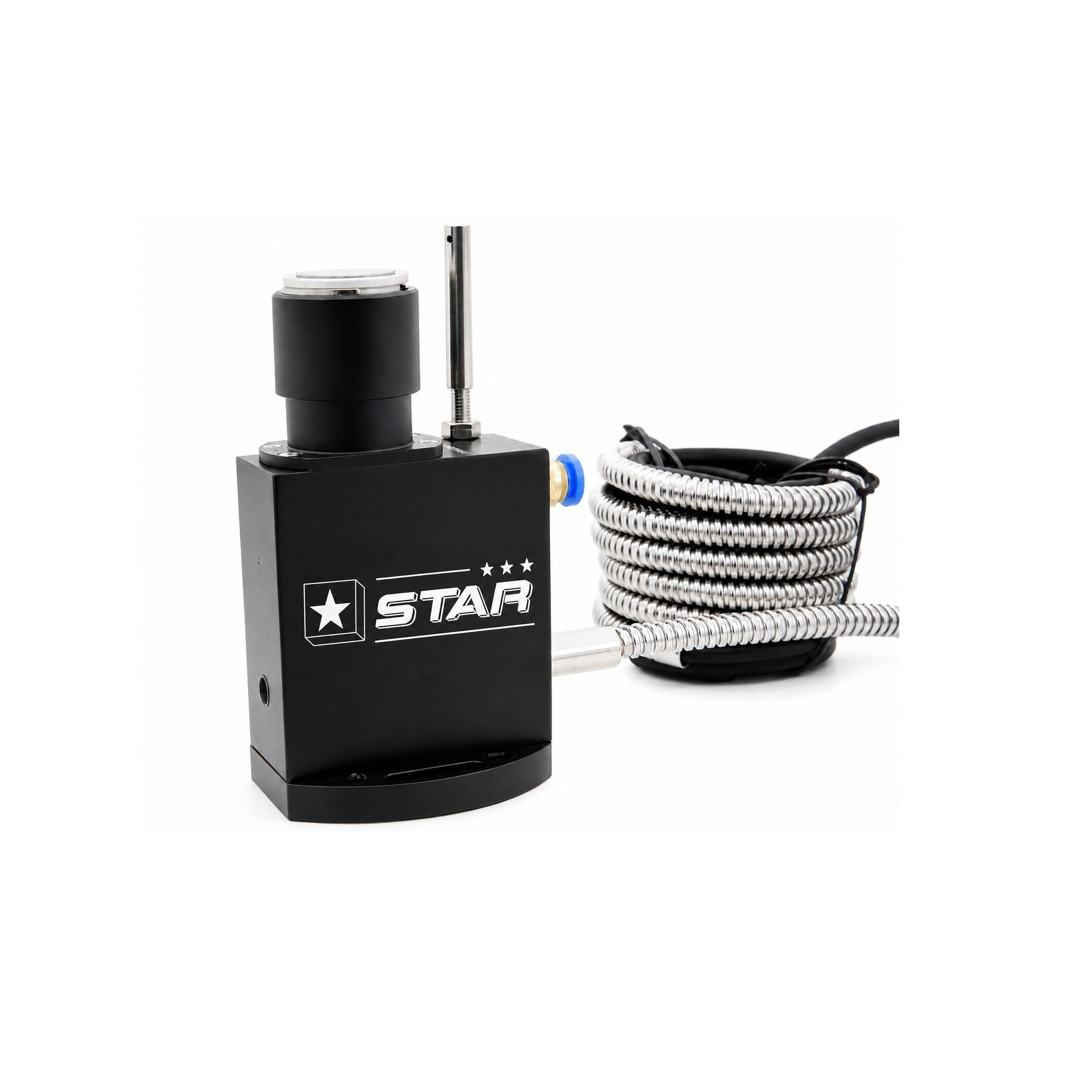

Star Photoelectric Super Stable Ultra Precision Compact Tool Setter STPETS-200

Star Photoelectric Super Stable Ultra Precision Compact Tool Setter STPETS-200

  • Brand - Star
  • Type - Measuring Instrument
  • Model - STPETS-200
  • Sensor Type - Photoelectric
  • Trigger Direction - +Z Only
  • Touch Pad Diameter - Ø 20 mm
  • Repeatability (2Σ) - < 0.5 µm
  • Pre-Stroke - 0.5 mm
  • Output Type - NO (Normally Open)
  • Stroke Length - 11 mm
  • Trigger Protection Dist. - 5.5 mm
  • Trigger Life - > 10 Million
  • Protection Level - IP 68
  • Trigger Force - 1.5 N
  • Touch Pad Material - Tungsten Carbide
  • Contact Nominal Value - DC 24V · Max 50mA
  • Dimensions (mm) - 60 × 27 × 105
